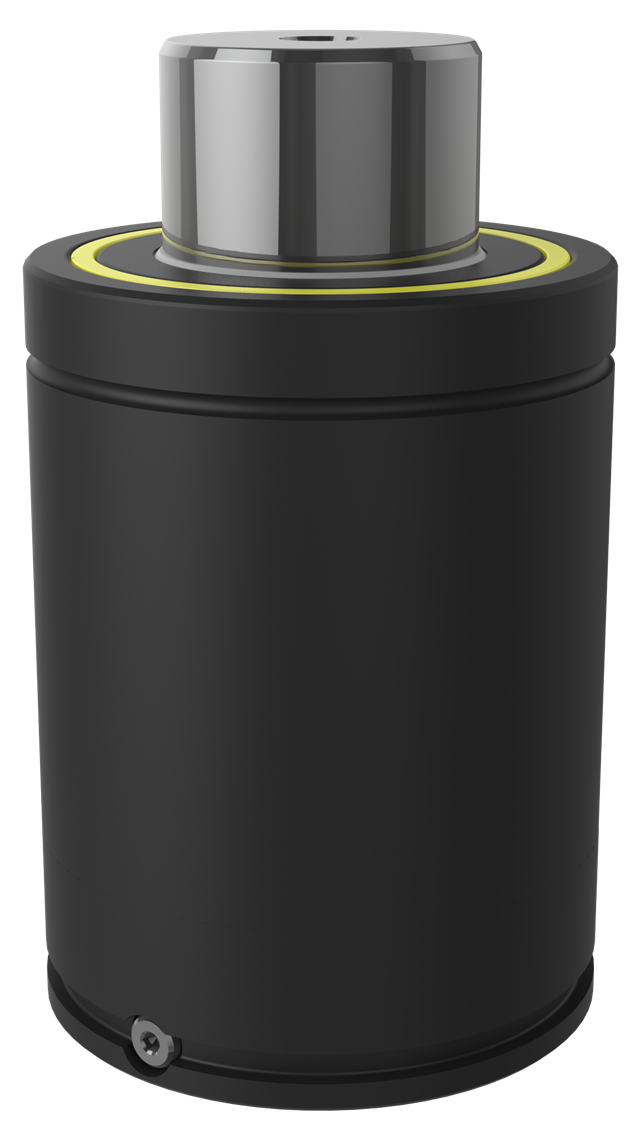

DS 7500-300
Die Separation Gas Springs used to assure gap between the upper and lower die.
DS Gas Springs are used between the upper and lower die to ensure a gap when the tool is in storage.
Using the DS springs is an excellent way to increase production rates and to avoid unnecessary wear of the die, press and gas springs.
A 70-80 % energy savings compared to using traditional gas springs is an additional benefit.
Using the DS springs is an excellent way to increase production rates and to avoid unnecessary wear of the die, press and gas springs.
A 70-80 % energy savings compared to using traditional gas springs is an additional benefit.
Diagram / specifications section
Preview
| L min | Minimum Length (in) | 17.91 |
| S | Stroke Length (in) | 11.81 |
| L | Total Length (in) | 29.72 |
Item specifications
- End Force At Full Stroke (LBF)27900
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.1165384
- Initial Force at max. pressure (lbf) 16860
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~20-50
- Weight (lb)89.694
