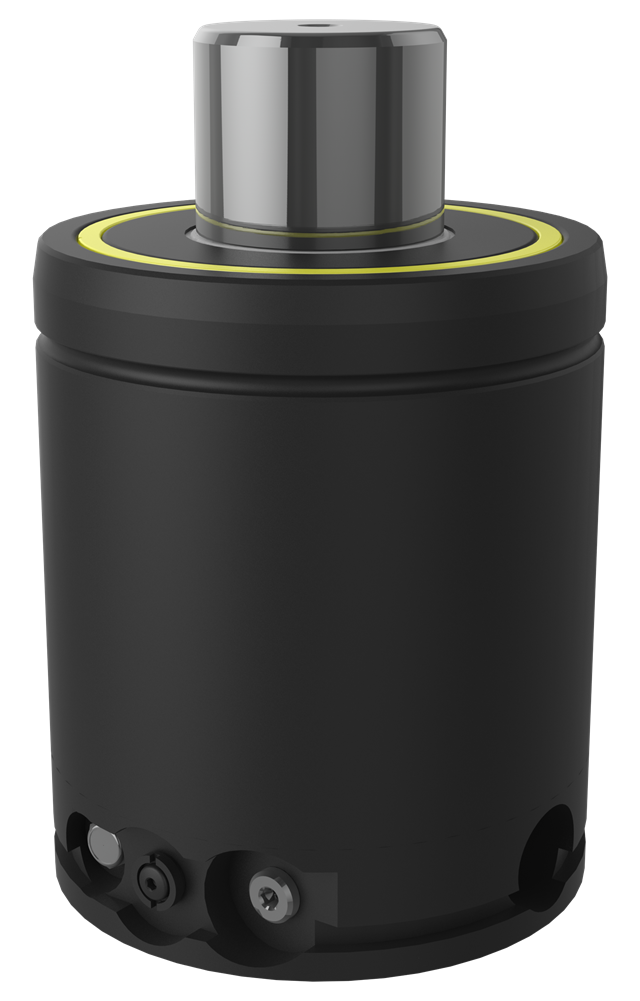

KF2-A 5000-150-155
For certain applications, it is difficult to know in advance exactly what stroke length will be required.
Therefore, the KF2-A models offer adjustable stroke lengths within 15 mm, with the use of 4 specially designed spacers built into the guide of the spring.
KF2-A Adjustable strokes are available according to the following table.
KF2-A Adjustable strokes are available according to the following table.
Diagram / specifications section
Preview
| L min | Minimum Length (in) | 12.48 |
| S | Stroke Length (in) | 6.1 |
| L | Total Length (in) | 18.58 |
Item specifications
- End Force At Full Stroke (LBF)16600
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.067097867
- Initial Force at max. pressure (lbf) 11240
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per MinuteSee separate info.
- Weight (lb)63.822
