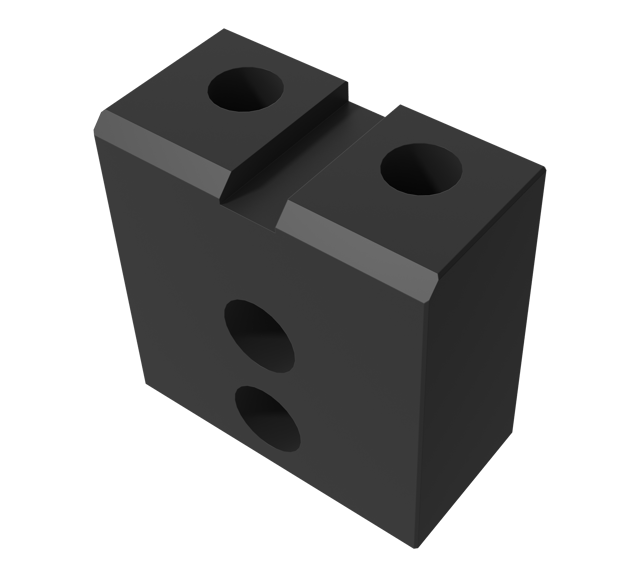

SA-750
The SA support can be fitted using the B mount option on NP springs and is normally used together with the FAC flange. The SA support is supplied complete with screws needed to mount the support to the spring.
It is recommended to back the SA mount with a key.
It is recommended to back the SA mount with a key.

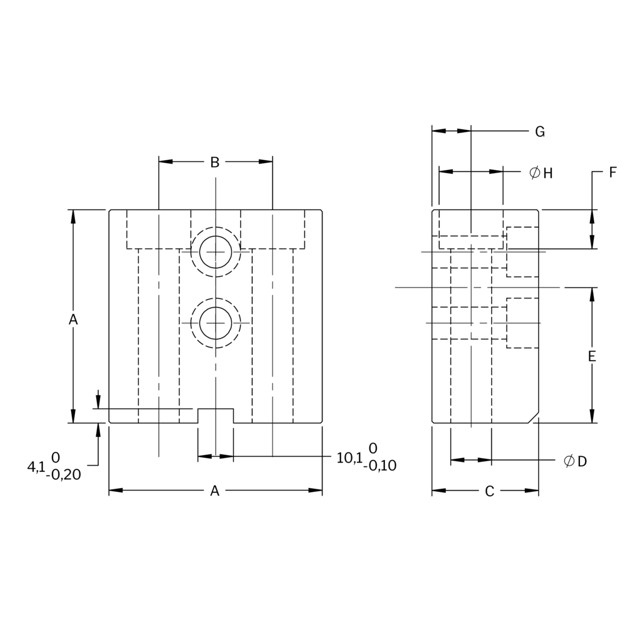

Diagram / specifications section
Preview
| A | A (in) | 2,362 |
| B | B (in) | 1,26 |
| C | C (in) | 1,181 |
| D | D (in) | 0,453 |
| E | E (in) | 1,496 |
| F | F (in) | 0,433 |
| G | G (in) | 0,433 |
| H | H (in) | 0,709 |
