MP-7500 VDI

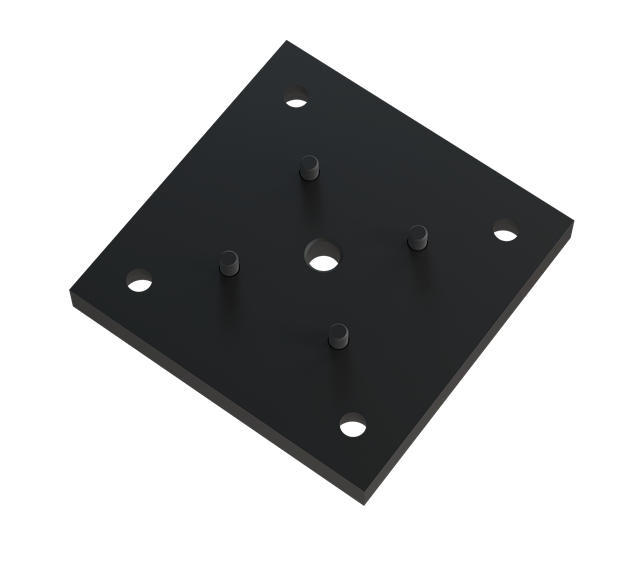

MP 7500 VDI Mount with 20mm thickness and M12 screw hole. Meets the VDI 3003 standard.
MP is a square base mount to mount the gas spring to the tool by using the bottom threads of the gas spring and meets the VDI 3003 standard into the tool. MP meets the ISO 11901-2, GM 90.25 and other standards., however to the VDI standard.
Diagram / specifications section
Preview
| A | A (in) | 7,48 |
| B | B (in) | 5433 |
| C | C (in) | 0,531 |
| D | D (in) | 0,787 |
| E | E (in) | 0,512 |
| F | F (in) | 3937 |
| G | G (in) | 0,433 |
| H | H (in) | 0,709 |
| J | J (in) | 0,591 |
| K | K (in) | 0,787 |
Item specifications
- Weight (lb)11.904948
- Weight (lb)11.904948
