FAC-750

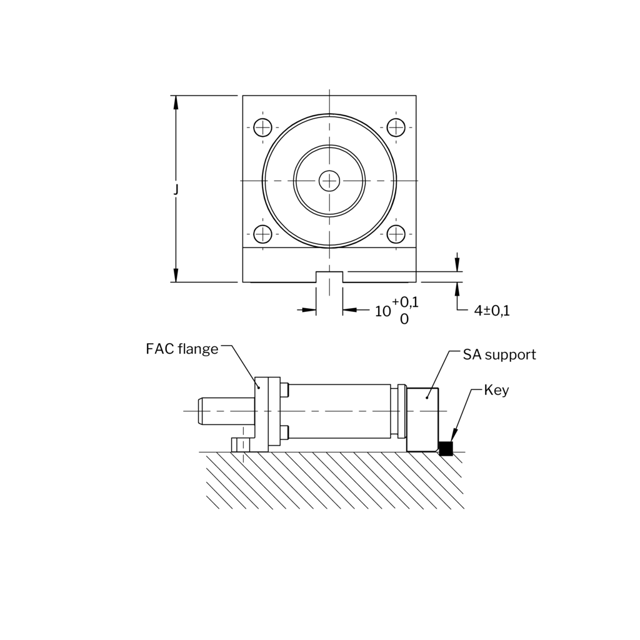

The FAC is a 90° angled, 2-piece flange for TU 750 – 5000. The flange is only to be used together with the SA support or any other support that supports the bottom of the spring. It is recommended to back the SA mount with a key.

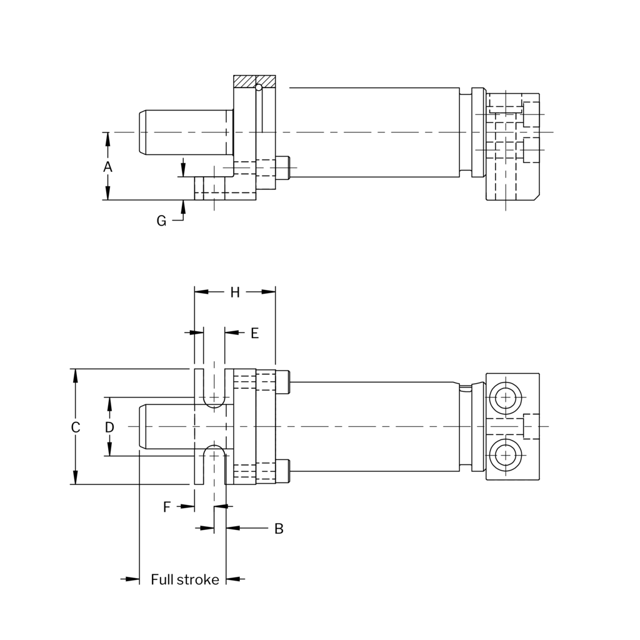

Diagram / specifications section
Preview
Preview
| A | A (in) | 1,496 |
| B | B (in) | 0,315 |
| C | C (in) | 2,559 |
| D | D (in) | 1,299 |
| E | E (in) | 0,472 |
| F | F (in) | 0,433 |
| G | G (in) | 0,512 |
| H | H (in) | 1,791 |
| J | J (in) | 2,756 |
